Mailcrafters - EDGE SERIES

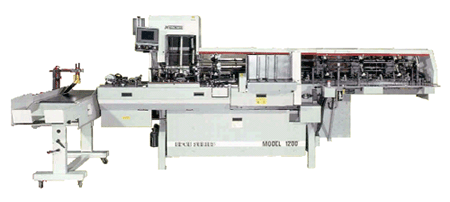

1200/1200X High Speed Inserting System


This state of the art inserting machine has earned the reputation as the best large envelope equipment in the mailing industry. The 1200/1200X handles envelopes from 4 by 7.5 inches up to 10" by 14", making it the most flexible inserter in the marketplace. Designed for reliable and long lasting service, the 1200/1200X, receiving periodic enhancements, has been in production for over 30 years. It will automatically collate, stuff, seal and stack finished envelopes.

The basic of its smooth high-speed operation is the parallel or conjugated cam. MailCrafters gripper arm detection system guards against missed or double inserts and is regarded as the most reliable in the industry, Document selection and separation from the insert stations is vacuum conrolled which gives the 1200 a high degree of consistency and reliability for all types of paper media.

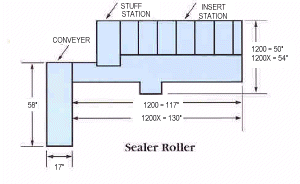

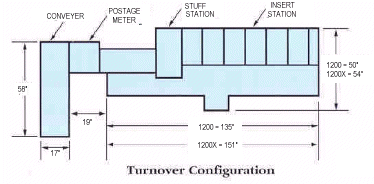

The Inserter is available in envelope turn-over or sealer-roller configuration. Features include a two handed "safety" start, simple job setup and changeover, and a host of options to satisfy any mail center need. The ultimate choice for many mail center and/or office environmental.

MODEL 1200/1200X FEATURES
  • Conjugated Cam Drive
  • Rugged Drive System
  • Two Hand "Safety" Start
  • Simple Set-Up Procedure
  • Color Operator Interface (Touch Screen)
  • PLC Control with Self Diagnostics
  • Station Toggle
  • Positive Vacuum Insert Selection
  • "Whisper" Vacuum Pump
  • Sequential Start-Up/Shut-Down Programming

SPECIFICATIONS
Standard Configurations
  • Insert stations available: 4 - 6 and up
  • Insert size: 8-5/8" x 11-1/4" - 1/4" thickness
  • Envelope size: 12" x 9" maximum
                             7-1/2" x 4" minimum
  • Envelope flap depth: 3" maximum
    (depending on flap construction)
  • Power Requirements:
                220 Volt Single Phase 30 amperes
                220 Volt Three Phase 20 amperes
  • B.T.U. Ratings:
                220 Volt Single Phase 2405 BTU/hr.
                220 Volt Three Phase 1479 BTU/hr.
  • Machine Weights:
    1200 1200X
    Sealer Roller: 1694 lbs. 1790 lbs.
    Turnover: 1914 lbs. 2039 lbs.
    Conveyor: 152 lbs. 152 lbs.
    (Add 900 lbs. for cabinet model)
Optional
  • Additional Stations
  • Open Feed Station
  • Book Feed Station
  • Push Feed Station
  • Friction Feeder
  • Envelope Track Detector
  • Insert Track Detector
  • End Fold
  • Density Checker
  • 8 Ft. Conveyor
  • Cabinet
  • Zip Mark Reading
  • System Interface (RS232)
  • Networking
  • Station Flip/Flop
  • Production Printing
  • Modem Link
    (For phone support)
  • Production Information
  • Batch Running
  • Inline Inkjet
