FOLDit 7.0TM

FOLDit 7

PRESENTING THE MAILCRAFTERS

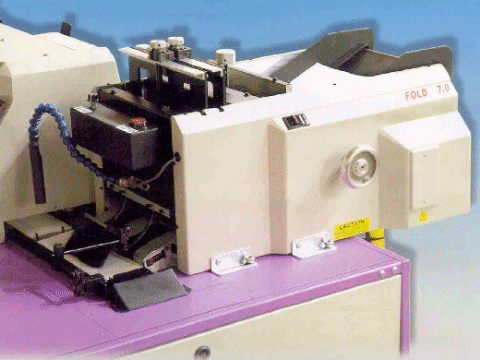

FOLDit 7.0TM - HIGH PERFORMANCE SHEET FOLDER

This high performance, moderately priced FOLDit 7.0 friction-feed sheet folder is designed and engineered to be added to inserting machines with minimum interface requirements. Using only one inserting station, or added to an open-feed extension, it provides the user with compact, quick on-line folding capability.

This folder has been specially developed to offer simplicity, economy and production quality to the low to mid-volume market. The FOLDit 7.0 is designed for ease of installation. It is ideal for controlling complicated sorting applications and its easy top-loading access assures correct document sequence integrity.

FOLDit 7.0 - FEATURES & SPECIFICATIONS
The new FOLDit 7.0 has the following standard features and specifications:
  • Friction-feed with a cycle speed in excess of 7000 sheets per hour
  • Easy Installation
  • Compatible with Most Inserters
  • Compact Size / Rugged Construction
  • Maximum Sheet Size of 8.5" x 14"
  • Utilizes two adjustable straight-up and one blank fold plate
  • Fold Styles: Letter Tri-fold, Fan Fold and Single Fold

Bar code reading and other system selection related functionability can be incorporated into the FOLDit 7.0 on a special factory request and quote basis.

  FOLDit 7

SPECIFICATIONS
  • Type of Folder: Friction-Feed
  • Maximum Sheet Size: 9-1/4" x 14"
  • Minimum Sheet Size: 4" x 6"
  • Maximum Fold (each plate): 8-1/4"
  • Minimum Fold (each plate): 2-3/8"
  • Plate Type: 2 quantity, Adjustable, Straight Up 1 quantity, Blank (no fold)
  • Operating Noltage: 110 VAC, 5 Amps, 60 Hz (220 VAC Special Order)
  • Weight: 71 pounds (machine only)
  • Speed: Exceeds 7000 sheets per hour
OPTIONS
  • 3 of 9 Code Scanning (for gathering)
  • Open-feed Kit
