Mailcrafters - EDGE II SERIES™
9800/9800L High Speed Inserting System


MODEL 9800/9800L FEATURES
  • PLC Control with Self Diagnostics
  • Sequential Start-Up/Shut-Down Programming
  • Station Toggle for Higher Production
  • Positive Vacuum Insert Selection
  • "Whisper" Vacuum Pump
  • Conjugated Cam Drive
  • Rugged Drive System

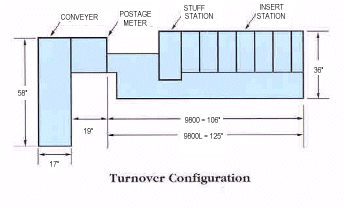

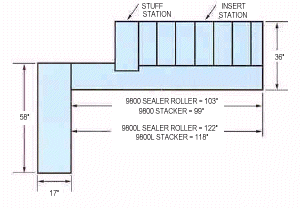

  • Envelope Turn-Over, or Sealer Roller
  • Inserted Envelope Divert
  • Large 10" Operator Interface (Touch Screen)
  • Programmable Light Tower
  • Batch Running
  • Production Information


THE EDGE II SERIES

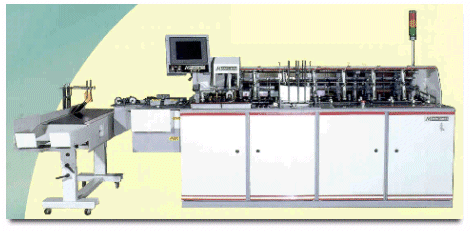

MODEL 9800/9800L HIGH SPEED INSERTING SYSTEM

This rugged workhorse of the mailing industry is universally known as the best production value for the busy mail center and or office environment. Engineered for reliable and long lasting service, the 9800/9800L, receiving periodic enhancements, has been in production for over 30 years. It will automatically collate, stuff, seal and stack envelopes or pass them through an inline postage meter to yield a finished mailing ready for bundling.

The basis of its smooth high-speed operation is the parallel or conjugated cam. Mailcrafters gripper arm detection system guards against missed or double inserts and is regarded as the most reliable in the industry. Document selection and separation from the insert stations is by vacuum control which gives 9800/9800L a high degree of consistency and reliability for all types of paper media.

The Edge II Series Model 9800 and 9800L is available in envelope turn-over, or sealer-roller configuration. Standard features include a safety two hand start and simple initial machine setup, without special tools. A true "operator friendly" inserting machine.

The ultimate choice for any mail center and/or office environment.

Standard Configurations
  • Insert stations available: 4 - 6 and up
  • Insert size: 6" x 9" - 1/4" thickness
  • Envelope size: 6-1/2" x 9-1/2" maximum
                             3-1/2" x 5-1/2" minimum
  • Envelope flap depth: 2-3/8" maximum
    (depending on flap construction)
  • Power Requirements:
                220 Volt Single Phase 30 amperes
                220 Volt Three Phase 20 amperes
  • B.T.U. Ratings:
                220 Volt Single Phase 2405 BTU/hr.
                220 Volt Three Phase 1749 BTU/hr.
  • Machine Weights (6 Station):
    9800 9800L
    Turnover: 1351 lbs. 1534 lbs.
    Sealer Roller: 1351 lbs. 1533 lbs.
    Conveyor: 152 lbs. 152 lbs.
    (Add 900 lbs. for cabinet model)

Optional

  • Additional Stations
  • Open Feed Station
  • Book Feed Station
  • Push Feed Station
  • Friction Feeder
  • Envelope Track Detector
  • Insert Track Detector
  • End Fold
  • Density Checker
  • 8 Ft. Conveyor
  • Cabinet

9800 L/Stretch Configuration
  • Insert size: 11¼" x 6" maximum
  • Envelope size: 12" x 7" maximum
      5½" x 3½" minimum (PM version varies)
