Mailcrafters - EDGE II SERIES™

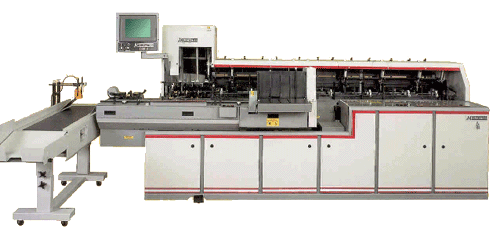

1200/1200X High Speed Inserting System
(Cabinet)


MODEL 1200/1200X FEATURES
  • PLC Control with Self Diagnostics
  • Sequential Start-Up/Shut-Down Programming
  • Station Toggle for Higher Production
  • Positive Vacuum Insert Selection
  • "Whisper" Vacuum Pump
  • Conjugated Cam Drive
  • Rugged Drive System
  • Envelope Turn-Over, or Sealer Roller
  • Large 10" Operator Interface (Touch Screen)
  • Programmable Light Tower
  • Batch Running
  • Production Information

This rugged workhorse of the mailing industry is universally known as the best production value for the busy mail center and/or office environment. Engineered for reliable and long lasting service, the 1200, receiving periodic enhancements, has been in production for over 30 years. It will automatically collate, stuff, seal and stack envelopes or pass them through an inline postage meter to yield a finished mailing ready for bundling.

The basis of its smooth high-speed operation is the parallel or conjugated cam. Mailcrafters gripper arm detection system guards against missed or double inserts and is regarded as the most reliable in the industry. Document selection and separation from the insert stations is vacuum controlled which gives the 1200 a high degree of consistency and reliability for all types of paper media.

The Edge II Series Model 1200 and 1200X is available in envelope turn-over and sealer-roller configuration. Standard features include a safety two hand start and simple initial machine setup, without special tools. A true "operator friendly" inserting machine.

The ultimate choice for any mail center and/or office environment.



SPECIFICATIONS
Standard Configurations
  • Insert Stations Available: 4-6 and up
  • Insert Size:
      Model 1200: 8 5/8" x 11 1/4" - ¼" thickness
    (overall 3/8" max.)
      Model 1200X: 9 5/8" x 13 1/4" - ¼" thickness
    (overall 3/8" max.)
  • Envelope Size:
      Model 1200: 9" x 12" - 4" x 7½" min.
      Model 1200X: 10" x 14" - 4" x 8½" min.
  • Envelope Flap Depth: 3" Maximum
  • Power Requirements:
      220 Volt Single Phase - 30 amp
      220 Volt Three Phase - 20 amp
  • B.T.U. Ratings:
      220 Volt Single Phase 2405 BTU/hr.
      220 Volt Three Phase 1749 BTU/hr.
  • Machine Weights:
        1200   1200X
    Sealer Roller:   1694 lbs.   1790 lbs.
    Turnover:   1941 lbs.   2039 lbs.
    Conveyor:   152 lbs.   152 lbs.
    (Add 900 lbs. for cabinet model)
Optional
  • Additional Stations
  • Open Feed Stations
  • Book Feed Stations
  • Push Feed Stations
  • Friction Feeder
  • Envelope Track Detector
  • Insert Track Detector
  • End Fold
  • Density Checker
  • 8 Ft. Conveyor
  • Cabinet
  • Zip Mark Reading
  • System Interface (RS232)
  • Networking
  • Station Flip/Flop
  • Production Printing
  • Modem Link
    (For phone support)

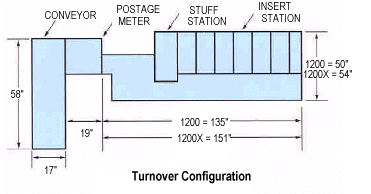

Turn Over Configuration

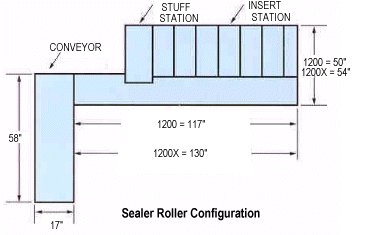

Sealer Roller Configuration
