Ultra Systems - Single Cut 100 Envelope Opener
With Mill Cutting Technology
Is An Extra Heavy Duty
High-Speed Envelope
Opening Machine
Utilizing Mill Cutting
Technology

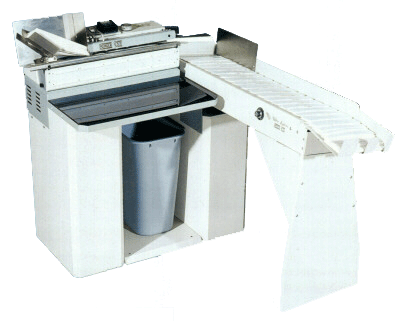

The Single Cut 100 Envelope Opener

The Single cut 100 Envelope Opener is an Extra Heavy Duty envelope opening machine that is designed for large volume processing operations. A true "operator friendly" system, this machine is comfortable in the busy office environment as well as the mail center. It's capable of handling regular size envelopes as well as large envelopes, including flats and thick envelopes.



BENEFITS:
  • Variable Speed
  • Flip-up table for flats
    (specifically designed for flats)
  • Unique envelope opening system
  • Feathered edge
  • Minimizes document damage
  • Variable cutting range of envelope, 0"-1/8"
  • Designed for office environment as well as the mail center (quiet, fast, efficient)
  • Counting and/or batch counting
  • Ability to count envelopes only

KEY FEATURES:

  • Heavy, rugged construction
  • Top quality ball bearing motors
  • Single motor driven system for longer life
  • Large capacity wide-belt conveyor/stacker
  • 100% use of ball bearing on all shafts
  • Quiet operation
  • Minimal service and maintenance requirements
  • Variable speed output conveyor
    (may be arranged to run in line or at a 90 angle)
SPECIFICATIONS:
Weight: 160 lbs.
(Conveyor: 55 lbs.)
Power:
110/120 V, 60Hz
Machine: 8 Amps

220 V, 50/60Hz
8 Amps

Speed: 7" envelopes at 600 per minute
Shorter envelopes-faster
Longer envelopes-slower
Envelope Sizes and Types:
Opens all sizes and types
(sizes and types can be mixed)
Envelope Thickness:
Automatic feed to approx. 3/8"
Feed Hopper Capacity:
Approximately 300 Remittance type

OPTIONS:

  • Vary Cut Adjustment (contols depth of cut adjustment from 0" to 1/8" in 10 thousandths increments by operator)
  • Indater: applies date to envelope


Quality and Innovation ... The Right Combination
