420 AND 438 FOLDER/FEEDER SPECIFICATIONS

FEATURE

420

438

Throughput Speed

Up to 30,000 documents per hour

Up to 30,000 documents per hour

Paper Weights

20# (75 GSM) 24# (90 GSM)
Please inquire for heavier weights

20# (75 GSM) 24# (90 GSM)
Please inquire for heavier weights

Paper Size

7" x 7" (178mm x 178mm) to
11" x 14" (305mm x 356mm)

7" x 7" (178mm x 178mm) to
11" x 14" (305mm x 356mm)

Load Capacity

2000 Sheets of 20# Bond

2000 Sheets of 20# Bond

Folder

4 Plates

4 Plates

Fold Types

"C" - "Z" - "V" - and Double "V"

"C" - "Z" - "V" - and Double "V"

Porosity

20 Gurley Seconds

20 Gurley Seconds

Stiffness

20# Stock (Gurley Stiffness Units)

20# Stock (Gurley Stiffness Units)

Counter Modes

Total, Batch or Resettable Count

Total, Batch or Resettable Count

Group Selector

1 to 5 Sheets Letter Fold

1 to 8 Sheets Letter Fold

Power

120 VAC, 1 Phase, 60Hz, 9 Amp

220 VAC, 1 Phase, 20 Amp

Length

120 Inches

106 Inches

Width

26 Inches

26 Inches

Height

52 Inches

58 Inches

Weight

350 Lbs.

725 Lbs.

THE THOR'S FOLDER/FEEDER SYSTEM

The Thor's Folder/Feeder is designed with the Mailroom in mind. With the large load capacity of 2000 sheets and its Windows based operator interface, the Thor can make any job an easy one. You have two choices in folder/feeder units. The 420 and the 438, both are well suited for any mailroom.

The 420 Folder Feeder

An economical and versatile solution to personalizing and inserting mail. Having the capacity to gather up to 5 sheets and fold them into a letter fold, seven sheets if you are folding in half, gives the 420 the ability to handle most mailing requirements. The 420 has many options for doing intelligent reading. They are: OMR, 3 of 9, 128, and 2 of 5. With this reading capability, the folder will be able to intelligently control 6 to 8 stations of selection, envelope diverting, and dual metering with postal weight calculation or by mark. This folder/feeder will be able to run cut or optional continuous forms.

The 438 Folder Feeder

The 438 has all the features of the 420 and more. With its heavy duty Folder, the 438 is designed for a 24 hour - 7 days a week capacity. The folder, having polyurethane/steel roller, can fold up to 8 sheets in a letter fold and 12 sheets in a half fold.

With the 420 or the 438 folder/feeder and the Mailcrafters Edge or Edge II Series Inserter, your mailing jobs will be processed with accuracy, dependability and speed.

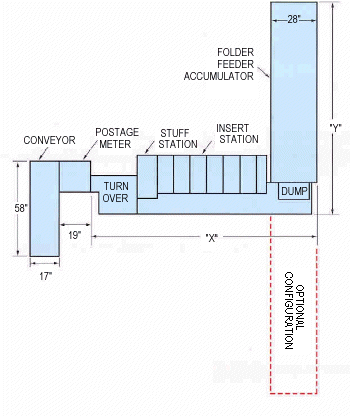

DIMENSIONS

MODELS
420
438
BASE
"X"
Dim.
"Y"
Dim.
"Y"
Dim.
9800
136"
143"
129"
9800L
160"
143"
129"
1200
170"
149"
135"
1200X
170"
150"
136"

420/438 Specs
