Mailcrafters - INK JET SYSTEM
Read Link Inkjet System

INLINE INKJET SYSTEM
  • 600 x 600 dpi Print Quality
  • Compact Size
  • Mobility (able to move from one inserter to another)
  • Self-Contained
  • Rigid Construction
  • Installs on Most Inserters

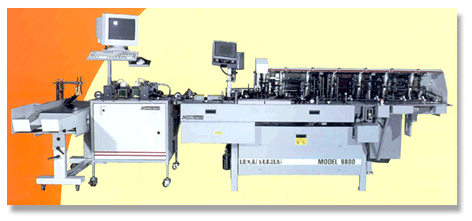

MODEL 9800 INLINE INKJET SYSTEM

This ruggedly built inkjet system is designed to run inline with most inserters, to render a complete mailing. Addressing, applying logos, and postnet bar codes is easily accomplished using these inline inkjets. Built in computerized controls makes these inkjets self-contained and mobile. Windows based software makes setups fast, easy, and works with most mailing software packages.

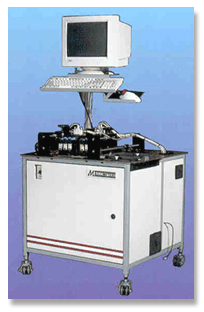

MODEL I.I.S. (INLINE INKJET SYSTEM)

With the I.I.S. inkjet you just input your mailing list and the I.I.S. will print the envelopes sequently.

The I.I.S. optionally allows you to send the address data for the envelope to be printed through an RS232 communications.

You can pring at the following speeds:

600 x 600 dpi 10 pph, 25" per sec. or 125 ft. per min.

600 x 300 dpi 20 pph, 50" per sec. or 250 ft. per min.

600 x 150 dpi 40 pph, 100" per sec. or 500 ft. per min.

(pph-based on #10 envelope)

MODEL R.L.I. (READ LINK INKJET SYSTEM)

The R.L.I. reads code (3 of 9, 2 of 5, 2d code, etc.) that is printed on the main document to be inserted into the envelope. After the code is read, the system will look up the code in an address data base and output the address to the inkjet at the appropriate time.

You can pring at the following speeds:

600 x 600 dpi 10 pph, 25" per sec. or 125 ft. per min.

600 x 300 dpi 20 pph, 50" per sec. or 250 ft. per min.

600 x 150 dpi 40 pph, 100" per sec. or 500 ft. per min.

(pph-based on #10 envelope)

SPECIFICATIONS
  • 1-1/2" of printing area per head
    (additional print heads available)
  • 29-1/2" wide x 28-3/8" deep x 69-7/8" high
  • Qty: 2 - 115 VAC 15 amp. circuits
    (One for the computer, the other for running the belt)
  • Weight: 200 lbs.
