EDGE SERIES

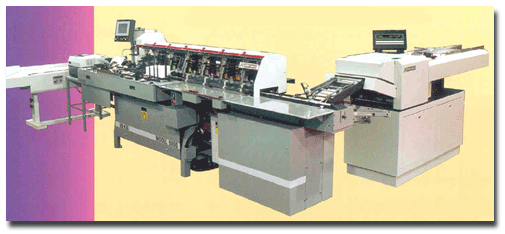

THOR High Speed Inserting System

PRESENTING THE MAILCRAFTERS
"EDGE SERIES" THOR SYSTEM

This state-of-the-art complete intelligent production mail finishing system was designed and manufactured to answer your toughest production mail challenges. The Thor System has the strength and ability to handle your everyday tasks and your production mail challenges.

Thor's unique combination of in-line reading, gathering, folding, and inserting capabilities allow for a rapid, efficient, and secure method of starting and completing your production mail tasks with a minimum amount of labor and a maximum of confidence. Thor's ability to read Optical Marks, and/or Bar Codes enhances the system's flexibility, allowing your organization the opportunity to maximize your standard technologies in the pursuit of document matching and integrity.

The standard Thor System comes complete with a proven in-line reading, gathering, and folding module, combined with the exemplary "Edge or Edge II Series" MailCrafter Inserter. The front end component comes standard with Optical Mark reading capability. With over 30 years of expertise in the production mail systems business, Inscerco Mfg. has always manufactured the MailCrafters product with a fervent desire to maintain and enhance their reputation of quality craftsmanship, leading edge market vision, and operator friendliness, creating an unparalleled world of happy and loyal customers.

THOR FEATURES

  • Complete Mail Processing/Finishing System
  • Optical Mark and Bar Code Reading Capability
  • Streamlined Single/Multiple Sheet Feeder, Folder, Accumlator Function
  • Conjugated Cam Drive
  • Rugged Drive System
  • Envelope Turn-Over or Sealer Roller Configuration
  • Two Hand "Safety" Start
  • Simple Set-Up Procedure
THOR Inserter Specifications

  9800 9800L 1200 1200X
Envelope Size Max. 6 1/2" x 9 1/2" 12" x 7" 12" x 9" 10" x 14"
Envelope Size Min. 3 1/2" x 5 1/2" 5 1/2" x 3 1/2" 7 1/2" x 4" 8" x 4"
Insert Size Max. 6" x 9" 11 1/4" x 6" 8 5/8" x 11 1/4" 9 5/8" x 13 1/4"
Insert Thickness Max. 1/4" 1/4" 1/4" 1/4"
Flap Depth Mzx. 2 3/8" 2 3/8" 3" 3"
Power Requirements 2008-220 VAC Single Phase 30 AMPS
Insert/Folder B.T.U. 3405 3405 3405 3405
Insert/Folder Wgt. (420) 1776 1969 2359 2494
Insert/Folder Wgt. (438) 2151 2344 2734 2869

NOTE: 9800L mounted turnover inserter minimum envelope size may be larger.

420 AND 438 FOLDER/FEEDER SPECIFICATIONS & DIMENSIONS
